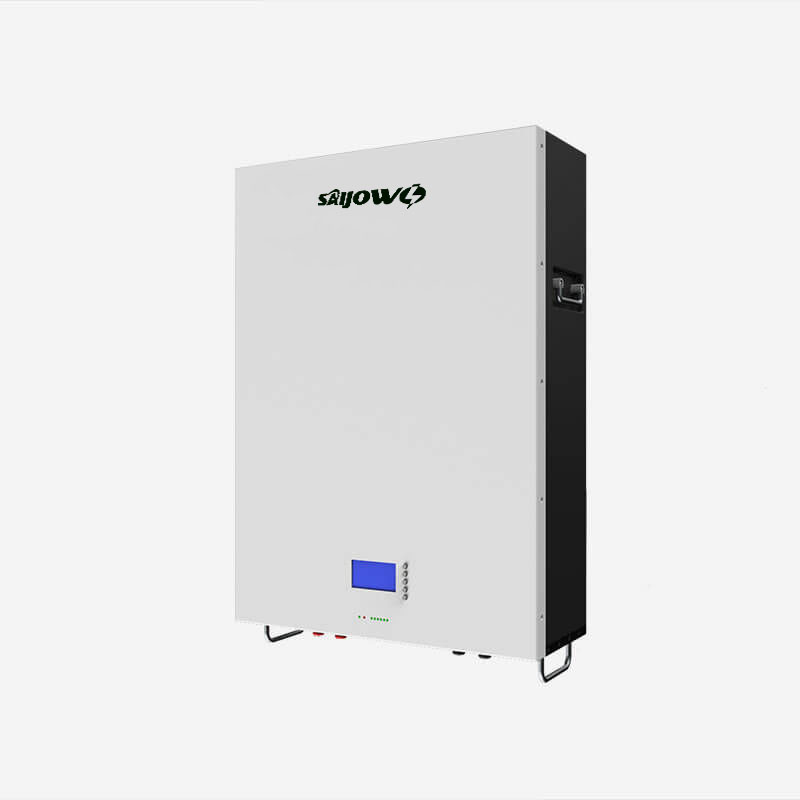

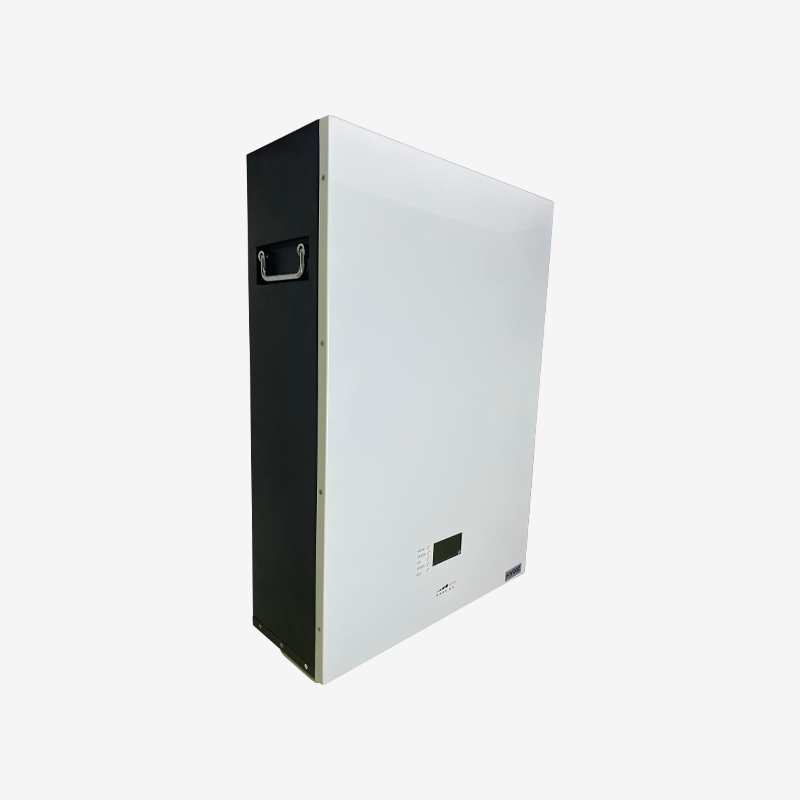

Power Wall LFP Battery 48V 100Ah
Brand: Saijowo
Model No.: SJW48100
Battery combination: 15s2p
Rated voltage: 48V
Capacity: 100Ah
Size: 180*485*680mm
Weight: about 45kg
Application: Home energy storage, Solar power storage, Solar off grid backup system, Solar Hybrid inverter UPS
Package: Carton Box
Lead time: about 25 days
Power Wall LFP Battery 48V 100Ah
Application areas : domestic & commercial wall-mounted energy storage
Use of life：charge and discharge conditions 0.2C charge 0.2C discharge, 1200 times ≥ 80% initial capacity
Charging temperature：0℃~40℃
Discharge temperature：-20℃~60℃.
Storage temperature：-10℃~ +35℃, less than 6 months.
Communication mode：□SMBUS □I2C □HDQ ■RS485 ■RS232 □CAN □Other protocols □No protocols
Specification:
Model | SJW48100 | SJW48150 | SJW48200 |
Energy | (4.8KWh) | (7 .2KWh) | (9.6KWh) |
Nominal voltage | 48V (15S) | 48V (15S) | 48V (15S) |
Nominal capacity | 100Ah | 150Ah | 200Ah |
Charging voltage | 54.75V(3.65V) | 54.75V(3.65V) | 54.75V(3.65V) |
Maximum operating current | 100A | 100A | 100A |
Discharge cut-off voltage | 40.SV(2.7V) | 40.5V(2.7V) | 40.5V(2.7V) |
Working temperature | Charging temperature: 0~50°C | ||
Discharging temperature):-20~60°C | |||
Storage temperature | -20°C~35°C@ Humidity 60％土25％ | ||
Size | 180*485*680mm | ||
Weight | About 45KG | About 70KG | About 85KG |
Function | Support RS485, CAN communication, dynamic identification automatic parallel without dial switch, adaptive switching PCST conference, support for new and old Battery hybrid machine. | ||
Why is Saijowo 48V 100Ah power storage wall most popular on the market?
The Saijowo power storage wall is a wall-mounted battery, which can be paired with solar energy and automatically recharges with sunlight. In the event of a grid failure and power outage, it automatically becomes your home's backup power supply, allowing your devices to continue running for days. Power storage walls reduce your reliance on the grid by storing solar energy for use when the sun is not shining, saving money, reducing your carbon footprint and preparing your home for power outages.
Saijowo Energy Storage LiFePO4 battery has the highest capacity in a standard casing available on the market. The highly sophisticated and integrated BMS with very low self consumption,brings safety, functionality and ease of use together in a lightweight and robust casing. The batteries has been especially designed to provide energy for Residential Energy Storage System,LCD screen, DIP switch could be optional.
Features of wall mounted battery:
Exclusive appearance design, 4-way battery temperature detection;
Support mixed parallel operation of old and new batteries;
One-key switch, support APP to select different brands of PCS protocol switching and OTA upgrade;
Support CAN and RS485 communication at the same time.
