No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

10Ah

Standard discharge(0.2C5A)after standard charge

Minimum

 9.8Ah

2

Nominal Voltage

48V

Mean Operation Voltage

3

Voltage at end of Discharge

35.8V

Discharge Cut-off Voltage

4

Charging at end of Voltage

54.6V

5

Internal Impedance

28mΩ

6

Standard charge

Constant Current 0.2C5A Constant Voltage 54.6V 0.02C5A cut-off

7

Standard discharge

Constant Current 1C5A end Voltage 35.8V

8

Fast charge

Constant Current0.5C5A Constant Voltage 54.6V 0.02C5A cut-off

9

Fast discharge

Constant Current 3C5A end Voltage 35.8V

10

Maximum Continuous Charge Current

0.5C5A

11

Maximum Continuous Discharge Current

3C5A

12

Operation Temperature Range

Charge:5~45℃

60+/-25%R.H. Bare Cell

Discharge:-10~60℃

13

Storage Temperature Range

Less than 1 year:-20~25℃

60+/-25%R.H. at the shipment state

Less then 3 months:-20~40℃

14

Weight

Approx 4kg

15

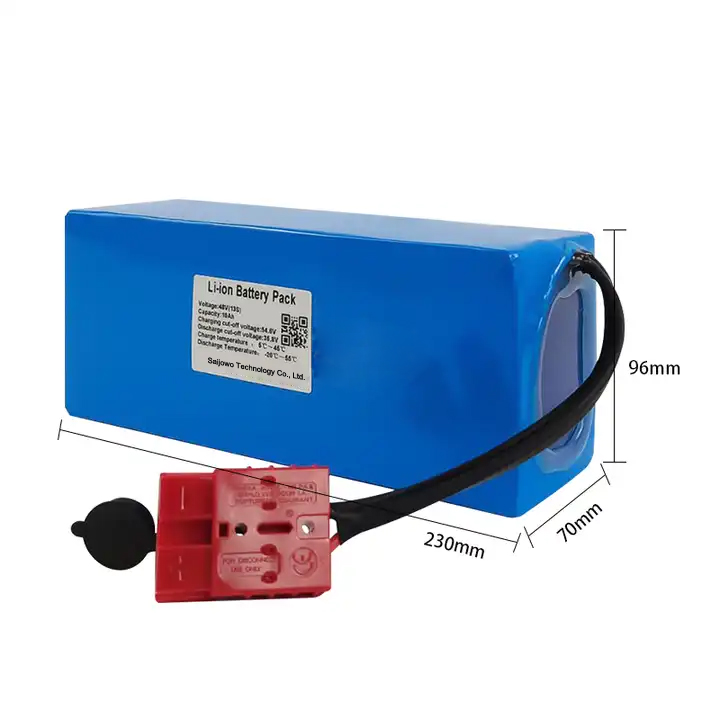

Dimension

230*96*70mm
