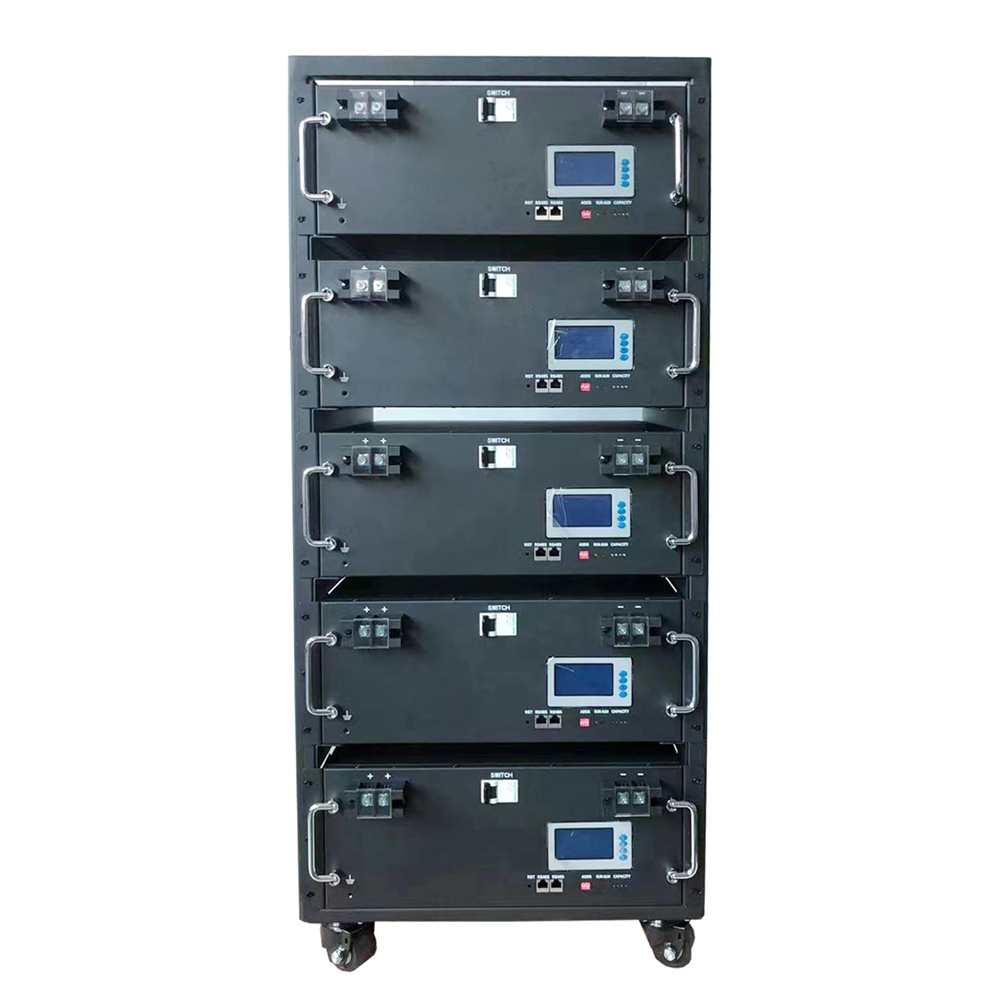

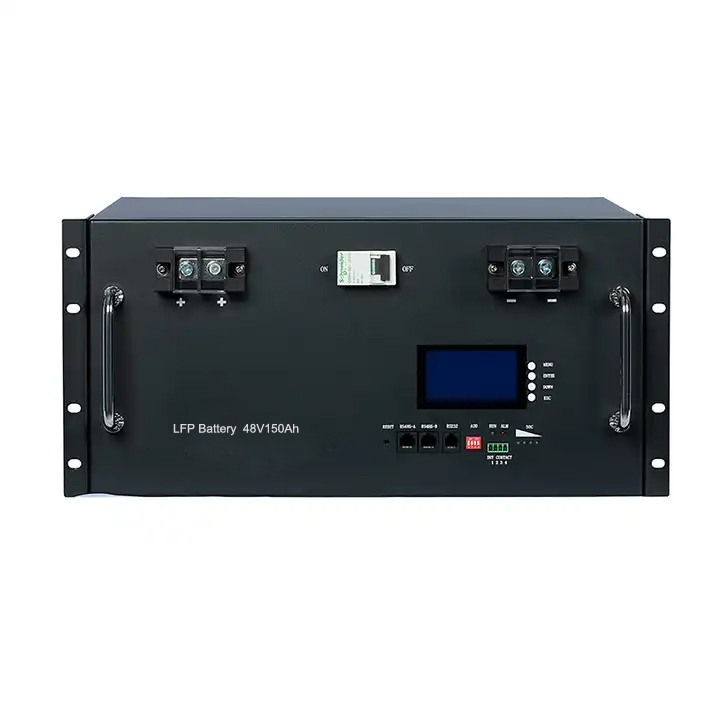

Saijowo Lifepo4 Battery 7kWh Solar Lifepo4 48v 150Ah Server Rack Energy Storage Battery
Communication interfaces: CAN&RS485;
Protection: Over-current, Over-voltage, Low-voltage, Over-temperature, Low-temperature protection, Short-circuit protection, etc.
Cycle life: 3000 cycles @80%DOD
Warranty: 3-5 years
Lead time: 15-20 days
Saijowo Lifepo4 Batteries 7kWh Solar Energy Storage Batteries 48V 150Ah Lithium Sever Rack Battery Module for UPS
Specification
Basic Characteristics | Nominal Voltage | 48V |
Nominal Capacity | 150AH | |
Nominal Energy | 7200Wh | |
Combination Method | 15S1P | |
Cycle Life | ≧3000 cycles@80%DOD | |
Months Self Discharge | 1%/Month | |
Efficiency of Charge | >97% | |
Efficiency of Discharge | >98% | |
Standard Charge | Recommended Charging Voltage | 55.0V |
Recommended Charging Current | 20A | |
Max.Charging Voltage | 55.5V | |
Max.Charging Current | 50A | |
Standard Discharge | Recommended Discharging Current | 100A |
Max.Peak Current | 200A(100~300ms) | |
Discharge Cut-off Voltage | 40.5V | |
Environmental | Charge Temperature | 0°C~55°C |
Discharge Temperature | -20°C~60°C | |
Storage Temperature | 0°C~40°C | |
Other | IP Class | IP30 |
Plastic Case | Metal | |
Dimension (in./mm.) | 442*467*132 | |
Weight (lbs./kg.) | About 60 | |
Others (optional) | Anti-theft function,LCD display |
- Higher Power : provides twice the power of a lead acid battery and even a high discharge rate while maintaining a high energy capacity.
- Lighter Weight : about 40% of the weight of a similar lead acid battery. Alternatives to lead-acid batteries.
- Long lifespan: up to 20 times the cycle life and 5 times the float/calendar life of a lead acid battery, helping to minimize replacement costs and overall costs of ownership
- Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high-impact overcharging or short-circuiting.
- Easy To Install
How it works?
How to install?
1.Put the battery into the cabinet
2.Drive the 4pcs screws
3.Connect the cables between battery modules
4.Connect the cables to inverter
Power On
Double check all the power cable and communication cable
(1) ON/OFF
Switch on all the battery modules and the green LED light below will be on
(2) Set ADD
Set ADD follow ADD instruction, pack 1 will be host, others are slavesties in all shapes.
Assembly Process
Packing&Shipping
Application
