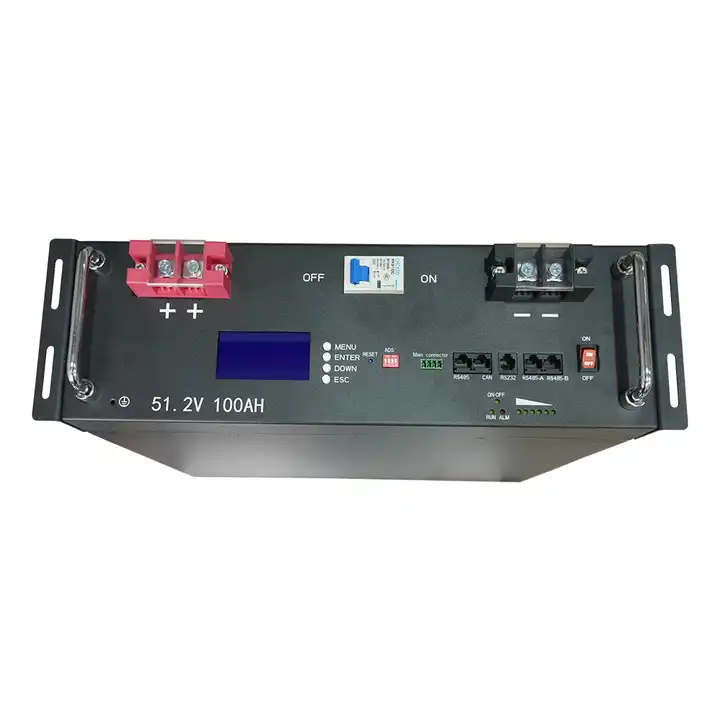

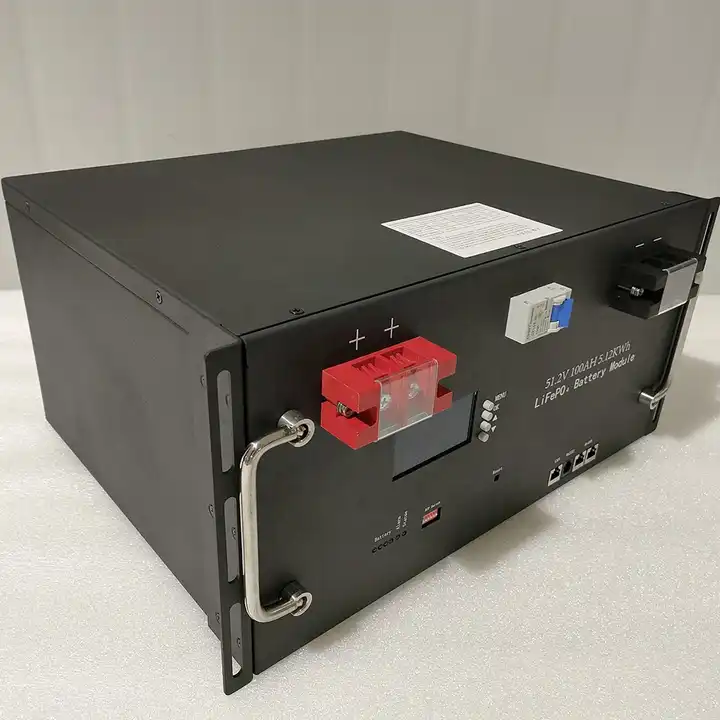

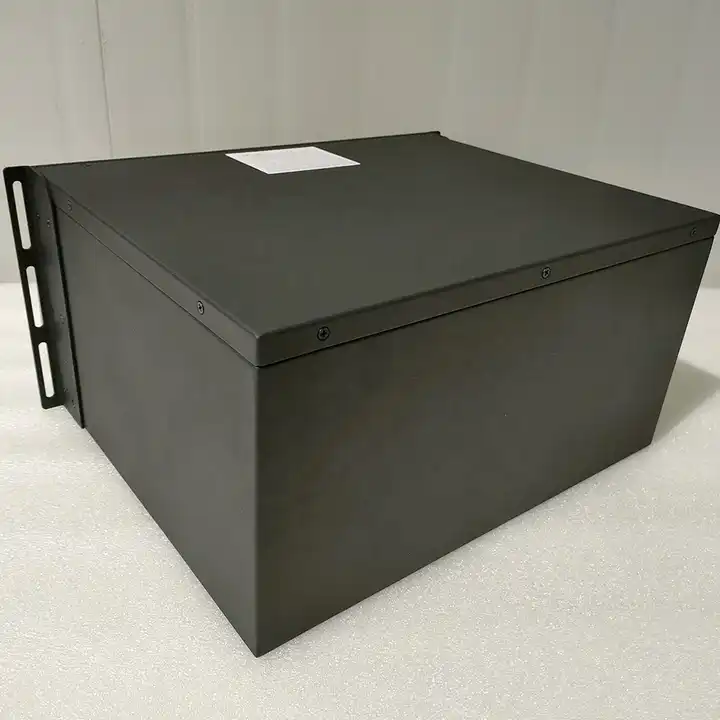

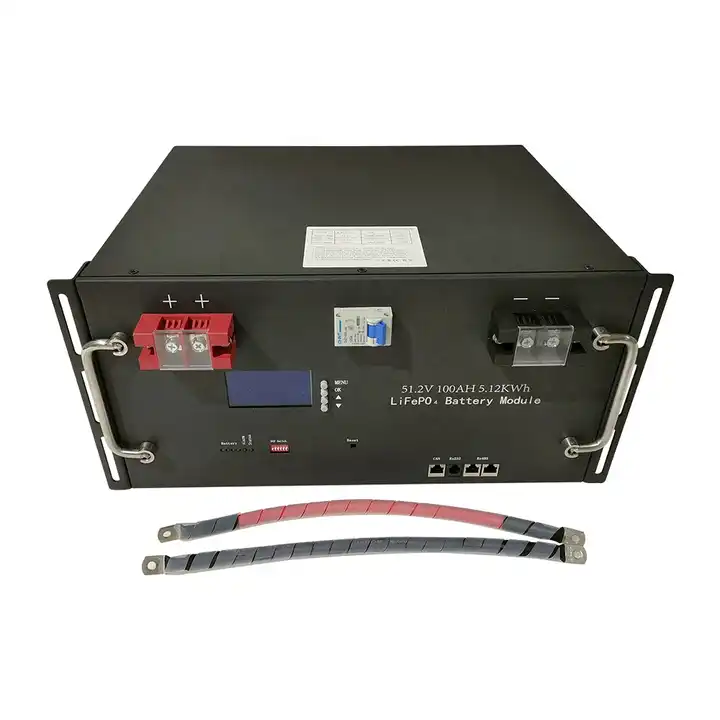

Saijowo 48V 100Ah LiFePO4 Batteries Rack Mount Battery Pack with LED Display
Communication interfaces: CAN&RS485;
Protection: Over-current, Over-voltage, Low-voltage, Over-temperature, Low-temperature protection, Short-circuit protection, etc.
Cycle life: 3000 cycles @80%DOD
Warranty: 3-5 years
Lead time: 15-20 days
Saijowo 48V 100Ah LiFePO4 Batteries Rack Mount Battery Pack with LED Display
Parameter
Item General parameter Nominal voltage 48V Nominal capacity 100Ah Energy 4800Wh Rated charge current 54V Standard charge current 20A Max charge current 70A Standard discharge current 50A Max. Continuous discharge current 100A Overcharge protection voltage 54.75V Over discharge protection voltage 40.5V Dimensions L420*W440*H132mm Charge temperature range -10~55℃ Recommend operation temperature 20~30℃ Discharge temperature range -20~55℃ Approx. weight: 43Kg Communication protocol RS232/RS485/CAN Cycle life 3000 cycles@80%DOD
Production Process
How to Install?
1.Put the battery into the cabinet
2.Drive the 4 pcs screws
3.Connect the cables between battery modules
4.Connect the cables to inverter
Power On
Double check all the power cable and communication cable
(1) ON/OFF
Switch on all the battery modules and the green LED light below will be on
(2) Set ADD
Set ADD follow ADD instruction, pack 1 will be host, others are slavesties in all shapes.
Battery Advantages
Application
Packaging&Shipping
