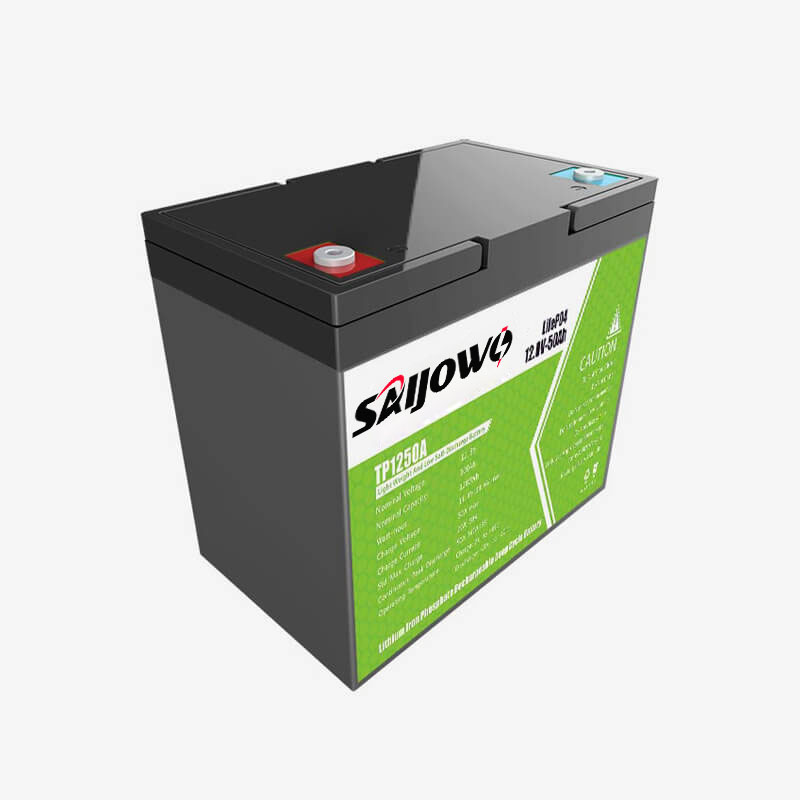

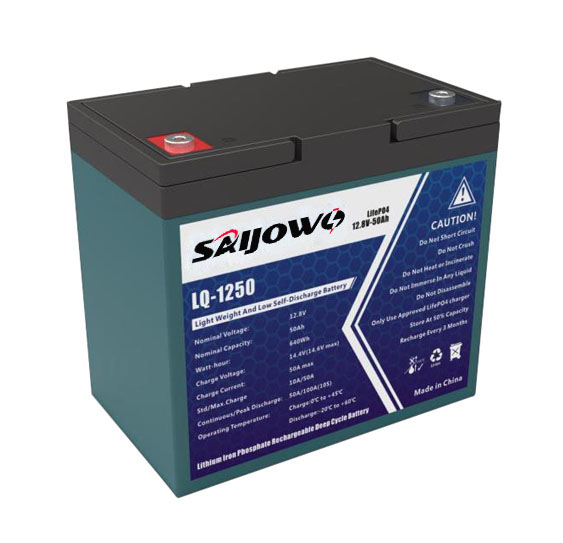

Saijowo Lithium Battery Lifepo412V 50Ah for Golf Trolleys

Model：SJW-1250A

Specification：23140160-4S1P-12.8V-50Ah
Nominal Voltage：12.8V
Nominal capacity：50Ah
Battery pack size：(MAX）229（L）*(MAX）138（W）*(TYPE）213（H) mm
Weight：6.5Kg
Lifespan: charge and discharge conditions: 0.2C charge, 0.2C discharge, 2000 times ≥80% of initial capacity
Charging temperature：0℃~40℃
Discharging temperature：-20℃~60℃
Storage temperature：-10℃~ +35℃，less than 6 months
Communication：□SMBUS □I2C □HDQ □RS485 □RS232 □CAN □Other protocol ■No protocol

Remark：M6 output terminal

Parameter:

Model No.	SJW-1250
Voltage	12.8V
Capacity	50Ah
Load power	≤500W
Configuration	4S1P
Size(L*W*T)mm	229*138*208
Weight	≈5.9Kg
Max. continuous charge current	50A
Max. continuous discharge current	50A
Peak discharge current	100A, 10S
Charge temperature	0~+45℃
Discharge temperature	-20~+60℃
Storage temperature (long term)	-10~+45℃

Battery Details

Battery Connection

Battery Production Process

Why Is Saijowo 12V 80Ah Lifepo4 Battery The best-selling On The Market?

Saijowo 12V lithium batteries feature in large capacity, high discharge power, fast charging, long cycle life, and high stability. This lithium battery has an 80% discharge depth. Compared with other li-ion chemicals, an important advantage is its thermal and chemical stability, thereby improving the safety of batteries. By combining with LiFePO4, this product can undergo more stable redox reactions and faster ion migration. Another is that it provides a longer cycle life. It has a very constant discharge voltage and can remain stable until the battery is depleted. This allows the battery to provide almost all power before discharge, and can greatly simplify or even eliminate the need for voltage regulation circuits. The back of the battery has impact resistance and has been tested to withstand severe external impacts without explosion.

Advantages of Lifepo4 Battery VS Lead Acid Battery

Capacity: the discharge curve of lifepo4 battery is flat, and 90% capacity utilization can be maintained at 12V, while the lead-acid battery is only 50%;

Weight: the weight of lifepo4 battery is only 1/3 of the lead-acid battery of the same specification;

Cycle Life: Lifepo4 battery has more than 3000~4000 cycles, and the service life can be 5~10 years.

Our Services:

1. Custom Battery Solution

We can customize everything for you according your ideas, including Dimension, Color, Housing, Logo, Bluetooth, Heating, GPS, Fuel Gauge, etc.

2. Quality Assurance Service

Every battery will be tested before shipping and we offer 3-5 years warranty for all lifepo4 batteries.

Fast Production

Lead time: 10 days for samples

         20 days for mass production order

Features:

Small size, long lifespan, light weight, multiple cycles
