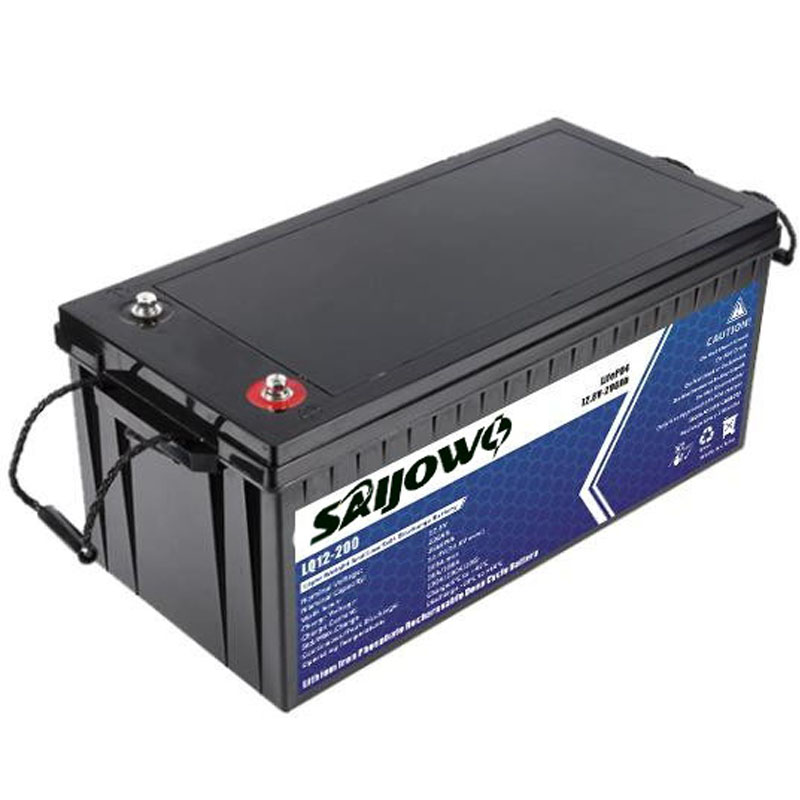

Rechargeable Lithium 12V 200Ah Deep Cycle Lifepo4 Battery

Model No.:LFP12V200AH
Battery Type:Lithium iron phosphate Battery
Brand:Saijowo
Battery combination:28148115 4S4P
Rated voltage:12.8V
Capacity:200Ah
Size (L*W*H):500*240*220mm

Weight:Approx. 23Kg

Certificate: UN38.3, TDG+GHS, MSDS, CE

Application:RV, Caravan, Camping cars, AGV, Robots, Solar UPS, Solar street led lights, golf carts, Marine UPS.

Rechargeable Lithium 12V 200Ah Lifepo4 Battery Deep Cycle

Application: electric tools, electric bicycles, electric motorcycles, low-speed electric vehicles, ships, golf carts, fork lift, electric wheelchair, sightseeing bus, electric tricycle, etc.

Parameter:

Model No.

SJW-12200

Voltage

12.8V

Capacity

200Ah

Load power

≤2000W

Configuration

4S4P

Size(L*W*T)mm

500*240*220

Weight

≈22.4Kg

Max. continuous charge current

100A

Max. continuous discharge current

100A

Peak discharge current

200A, 10S

Charge temperature

0~+45℃

Discharge temperature

-20~+60℃

Storage temperature (long term)

-10~+45℃

Why Is Saijowo 12V 200Ah Lifepo4 Battery The best-selling On The Market?

Saijowo 12V lithium batteries feature in large capacity, high discharge power, fast charging, long cycle life, and high stability. This lithium battery has an 80% discharge depth. Compared with other li-ion chemicals, an important advantage is its thermal and chemical stability, thereby improving the safety of batteries. By combining with LiFePO4, this product can undergo more stable redox reactions and faster ion migration. Another is that it provides a longer cycle life. It has a very constant discharge voltage and can remain stable until the battery is depleted. This allows the battery to provide almost all power before discharge, and can greatly simplify or even eliminate the need for voltage regulation circuits. The back of the battery has impact resistance and has been tested to withstand severe external impacts without explosion.

Benefits of Lithium Battery:

● High capacity,low weight,Increased energy in given space

● Fast charging

● High operational reliability

● Safest lithium LFP technology

● Excellent long life times

● Built-in intelligent BMS to protect the battery pack at any time and prolong its service life

● Maintenance free

Advantages of Lifepo4 Battery VS Lead Acid Battery

Capacity: the discharge curve of lifepo4 battery is flat, and 90% capacity utilization can be maintained at 12V, while the lead-acid battery is only 50%;

Weight: the weight of lifepo4 battery is only 1/3 of the lead-acid battery of the same specification;

Cycle Life: Lifepo4 battery has more than 3000~4000 cycles, and the service life can be 5~10 years.

Details of Lifepo4 Battery:

Production Process
