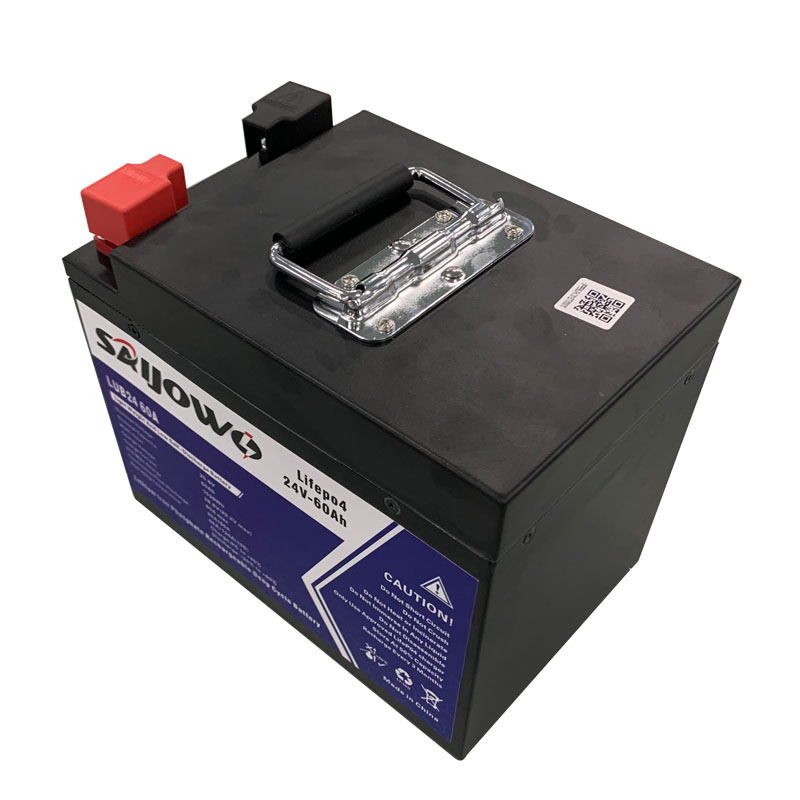

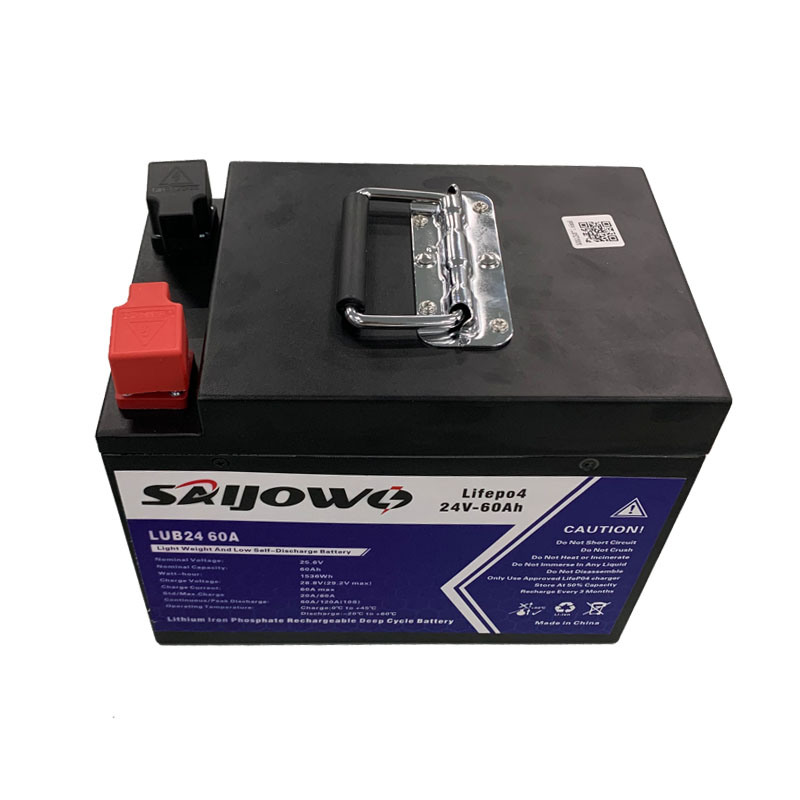

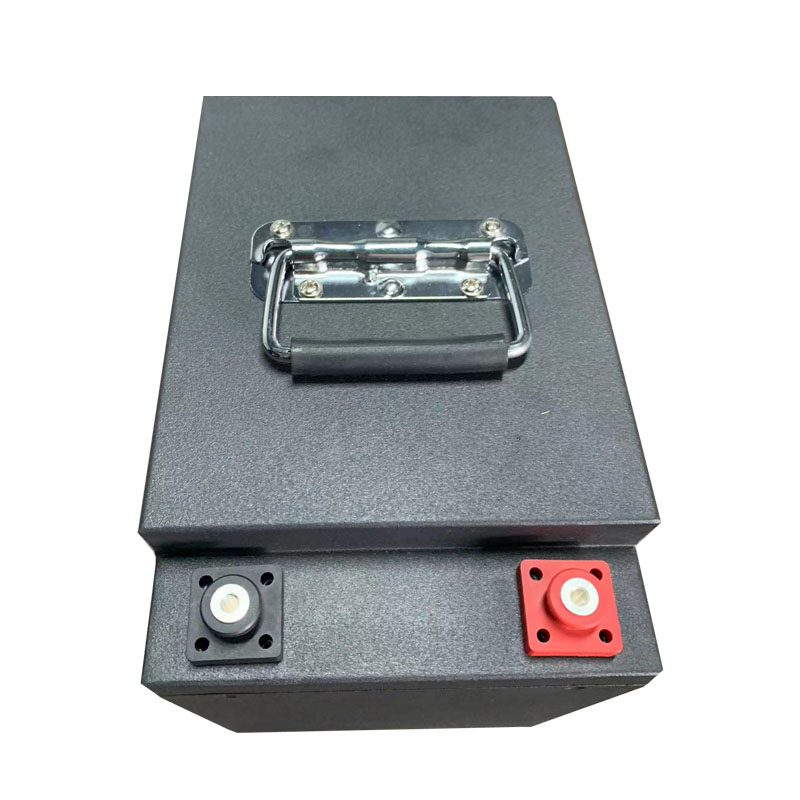

Lifepo4 24Volt 60Ah Battery Pack

Model: LFP 2460Ah

Brand: SAIJOWO

Battery Type: LiFePO4 Battery

Voltage:25.6v

Capacity:60Ah

Weight: 13KG

Cycle life: 3500 cycles @80%DOD

Warranty: 3-5years

Lead time: 15-20 days

Dimension:260*218*168mm

Application: electric tools, electric bicycles, electric motorcycles, low-speed electric vehicles, ships, golf carts, fork lift, electric wheelchair, sightseeing bus, electric tricycle, etc.


Saijowo Lifepo4 24Volt 60Ah Battery Pack for Electric Wheelchair

Model: LFP 24V 60Ah

Cycle life: 3500 cycles @80%DOD

Warranty: 3-5years

Lead time: 15-20 days

Parameter:

Battery Type

Lifepo4 (8S1P-25.6V-60AH)

Nominal Voltage

25.6V

Nominal Capacity

60Ah

Charging Limit Voltage

29.2V

Discharge Cut-off Voltage

20V

Internal Resistance

40mΩ

Standard Charge Current

15A

Standard Discharge Current

20A

Max.Continuous Discharge Current

60A

Weight

About 13Kg

Dimension

260*218*168mm

Operation Temperature Range

Charge: 0~+45℃;

Discharge: -20~+60℃

Recommended operating temperature: 15℃~35℃

Self-Discharge Rate

Residual capacity: ≤3%/month;

Why Is Saijowo 24V 60Ah Lifepo4 Battery The best-selling On The Market?

Saijowo 24V lithium batteries feature in large capacity, high discharge power, fast charging, long cycle life, and high stability. This lithium battery has an 80% discharge depth. Compared with other li-ion chemicals, an important advantage is its thermal and chemical stability, thereby improving the safety of batteries. By combining with LiFePO4, this product can undergo more stable redox reactions and faster ion migration. Another is that it provides a longer cycle life. It has a very constant discharge voltage and can remain stable until the battery is depleted. This allows the battery to provide almost all power before discharge, and can greatly simplify or even eliminate the need for voltage regulation circuits. The back of the battery has impact resistance and has been tested to withstand severe external impacts without explosion.

Product Advantages:

BMA Smart Bluetooth Monitoring System

· Intelligent and safe communication

· innovative communication charging technology

· Connecting to mobile phones to view battery state in real time

Glue Filling Process

· Insulation, fireproof, waterproof, waterproof grade IP67

Automotive Grade Battery Cells&Automotive Modules

· Surging power, long-lasting battery life

Active Fire Extinguishing Device

· Kill the danger at the early stage and extinguish the fire in an enclosed space in seconds.

· Active induction automatic fire extinguishing, gas fire extinguishing with zero residue, long-term maintenance-free protection

Active Balancing

· Maximizing attenuation, real-time and active balancing, balancing current 2A,

· After balancing, the voltage reduction difference of the battery is ≤ 5mv

Battery Applications:

· Energy Storage System: base stations, computer room power supplies, clean energy energy storage, grid power energy storage, home optical storage systems, etc.

· Backup Power Supply: electric tools, electric bicycles, electric motorcycles, low-speed electric vehicles, ships, golf carts, fork lift, electric wheelchair, sightseeing bus, electric tricycle, etc.

Our Services:

· Custom Battery Solution: We can customize everything for you according your ideas, including Dimension, Color, Housing, Logo, Bluetooth, Heating, GPS, Fuel Gauge, etc.

· Quality Assurance Service:Every battery will be tested before shipping and we offer 3-5 years warranty for all lifepo4 batteries.

Fast Production:

Lead time: about 10 days for samples; about 20 days for mass production order
