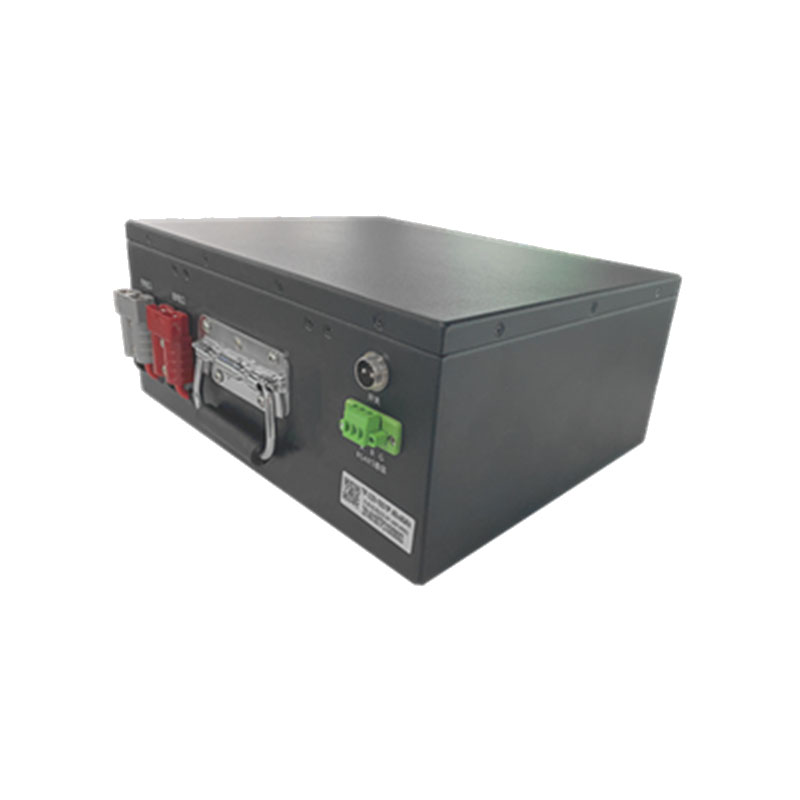

Saijowo AGV LiFePO4 Battery 48V 40Ah
Model: LFP 48V 40Ah
Type: Lifepo4 Battery
Voltage: 51.2v
Capacity: 40Ah
Cycle life: 3500 cycles @80%DOD
Warranty: 3-5years
Lead time: 15-20 days
Saijowo AGV LiFePO4 Battery 48V 40Ah
Model: AGV 51.2V 40Ah
Cycle life: 3500 cycles @80%DOD
Warranty: 3-5years
Lead time: 15-20 days
Parameter
No. | Item | General Parameter | Remark | |
1 | Rated Capacity | Typical | 40Ah | Standard discharge(0.2C5A)after standard charge |
Minimum | 40Ah | |||
2 | Nominal Voltage | 48V | Mean Operation Voltage | |
3 | Voltage at end of Discharge | 35.8V | Discharge Cut-off Voltage | |
4 | Charging at end of Voltage | 54.6V |
| |
5 | Internal Impedance | 28mΩ |
| |
6 | Standard charge | Constant Current 0.2C5A Constant Voltage 54.6V 0.02C5A cut-off |
| |
7 | Standard discharge | Constant Current 1C5A end Voltage 35.8V |
| |
8 | Fast charge | Constant Current0.5C5A Constant Voltage 54.6V 0.02C5A cut-off |
| |
| ||||
9 | Fast discharge | Constant Current 3C5A end Voltage 35.8V |
| |
10 | Maximum Continuous Charge Current | 0.5C5A |
| |
11 | Maximum Continuous Discharge Current | 3C5A |
| |
12 | Operation Temperature Range | Charge:5~45℃ | 60+/-25%R.H. Bare Cell | |
Discharge:-10~60℃ | ||||
13 | Storage Temperature Range | Less than 1 year:-20~25℃ | 60+/-25%R.H. at the shipment state | |
Less then 3 months:-20~40℃ | ||||
14 | Weight | Approx 40kg |
| |
15 | Dimension | 230*96*70mm | ||
Why Is Saijowo 48V 40Ah Lifepo4 Battery The best-selling On The Market?
Saijowo 48V lithium batteries feature in large capacity, high discharge power, fast charging, long cycle life, and high stability. This lithium battery has an 80% discharge depth. Compared with other li-ion chemicals, an important advantage is its thermal and chemical stability, thereby improving the safety of batteries. By combining with LiFePO4, this product can undergo more stable redox reactions and faster ion migration. Another is that it provides a longer cycle life. It has a very constant discharge voltage and can remain stable until the battery is depleted. This allows the battery to provide almost all power before discharge, and can greatly simplify or even eliminate the need for voltage regulation circuits. The back of the battery has impact resistance and has been tested to withstand severe external impacts without explosion.
Product Advantages:
BMA Smart Bluetooth Monitoring System
Intelligent and safe communication
innovative communication charging technology
Connecting to mobile phones to view battery state in real time
Glue Filling Process
Insulation, fireproof, waterproof, waterproof grade IP67
Automotive Grade Battery Cells&Automotive Modules
Surging power, long-lasting battery life
Active Fire Extinguishing Device
Kill the danger at the early stage and extinguish the fire in an enclosed space in seconds.
Active induction automatic fire extinguishing, gas fire extinguishing with zero residue, long-term maintenance-free protection
Active Balancing
Maximizing attenuation, real-time and active balancing, balancing current 2A,
After balancing, the voltage reduction difference of the battery is ≤ 5mv
Battery Applications:
Energy Storage System: base stations, computer room power supplies, clean energy energy storage, grid power energy storage, home optical storage systems, etc.
Backup Power Supply: electric tools, electric bicycles, electric motorcycles, low-speed electric vehicles, ships, golf carts, fork lift, electric wheelchair, sightseeing bus, electric tricycle, etc.
Our Services:
Custom Battery Solution: We can customize everything for you according your ideas, including Dimension, Color, Housing, Logo, Bluetooth, Heating, GPS, Fuel Gauge, etc.
Quality Assurance Service:Every battery will be tested before shipping and we offer 3-5 years warranty for all lifepo4 batteries.
Fast Production:
Lead time: about 10 days for samples; about 20 days for mass production order
